yang2020laboratoryThis study involved 3552 clinical samples from 410 COVID-19 patients confirmed by Guangdong CDC. Oropharyngeal swabs, nasopharyngeal swabs and sputum samples were tested for upper respiratory tract infection, while bronchoalveolar lavage fluid (BALF) was tested for lower respiratory tract infection.
upper_resp_tract

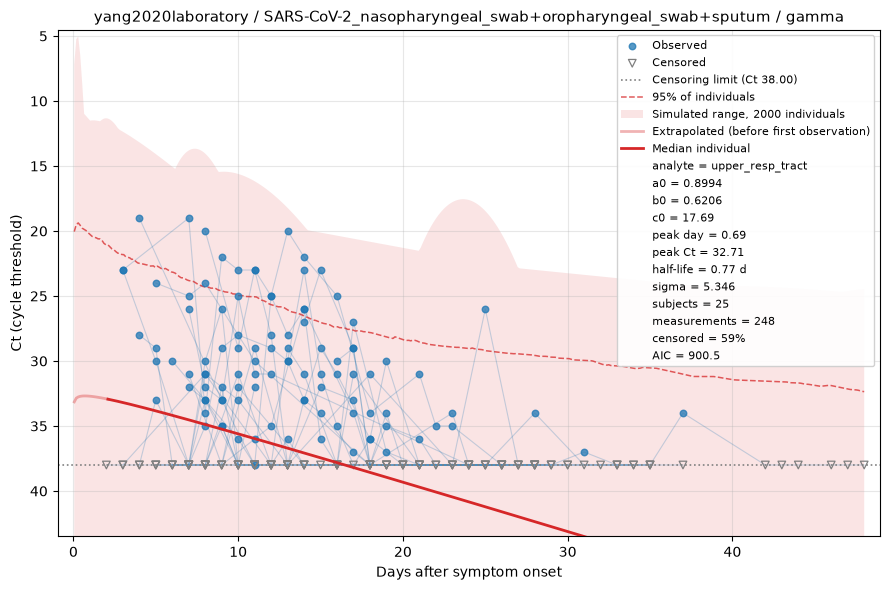

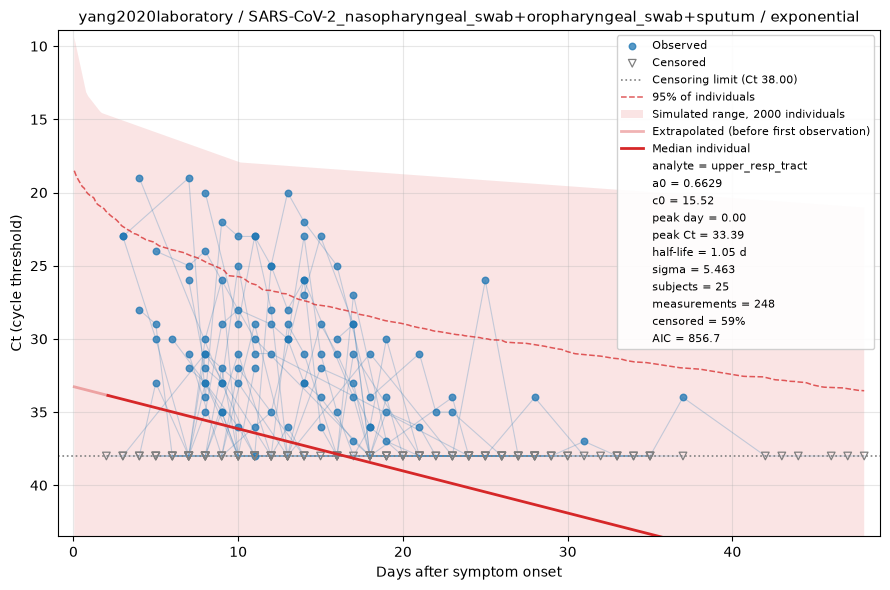

SARS-CoV-2 RNA ct value from evaluation of upper respiratory tract samples.
Fitted by censored maximum likelihood. The red line is the median individual; the shaded region is the full range of a simulated cohort drawn from the fitted population, so it shows what simulating from this dataset would produce rather than a confidence interval, with dashed lines at the central 95%. Open triangles are non-detects, drawn at the censoring limit and entering the fit as "below this value" rather than being dropped. See the modelling methods for what these estimates do and do not support.
lower_resp_tract
SARS-CoV-2 RNA ct value from evaluation of upper respiratory tract samples.
Fitted by censored maximum likelihood. The red line is the median individual; the shaded region is the full range of a simulated cohort drawn from the fitted population, so it shows what simulating from this dataset would produce rather than a confidence interval, with dashed lines at the central 95%. Open triangles are non-detects, drawn at the censoring limit and entering the fit as "below this value" rather than being dropped. See the modelling methods for what these estimates do and do not support.
